KAYO Range
KAYO Motorcycles and ATV’s is a dynamic and forward-thinking brand that aims to provide riders with the ultimate off-road experience. With a strong focus on research and development, KAYO has assembled a team of industry experts and engineers who share a common goal: to create cutting-edge motorcycles and all-terrain vehicles that push the boundaries of performance and design.
ATV

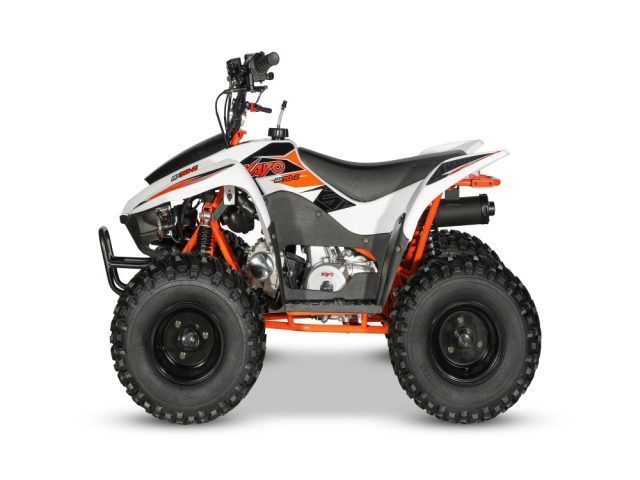

AY70
Engine Type Single-Cylinder, 4-stroke, Air Cooling, Full-Auto
Displacement 72cc
Bore*Stroke 47mm*41.4mm
Compression Ratio 8.8 : 1
Max Power 3.1 / 8000 kw/rpm
Max Torque 4.5 / 5000 N.m/r/min
Fuel System Standard Carburetor
Starting Electric
Transmission Chain (13T-37T 420#)
Ignition CDI

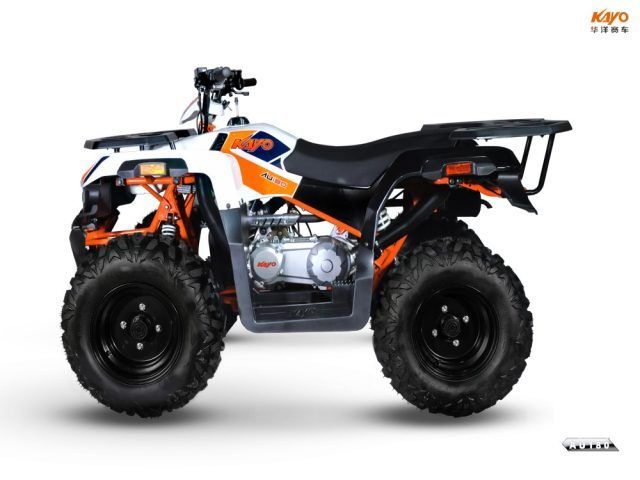

AU180
Engine Type 180 CVT JN/GY6 (R-N-F)
Displacement 177.3cc
Bore*Stroke 62.5*57.8mm
Compression Ratio 10.0 : 1
Max Power 7.3 / 7500 kw/Rpm
Max Torque 10 / 6000 Nm. /Rpm
Fuel System Carburetor
Starting Electric
Transmission Chain (17T-37T 530#)
Ignition CDI

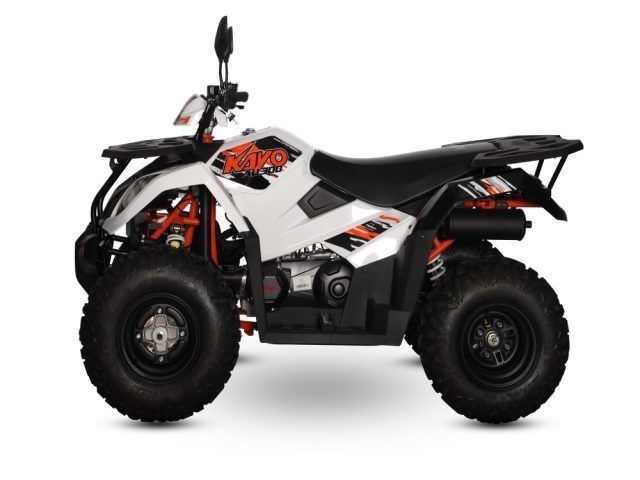

AU300
Engine Type LXCVT300 Single Cylinder , 4 Stroke, SOHC, Water Cooling
Displacement 270.5cc
Bore*Stroke 72.7*65.5
Compression Ratio 11 : 01
Max Power 17 / 7000 kW/(r/min)
Max Torque 24.5 / 5000 N·m/(r/min)
Fuel System Electronic Fuel Injection ( EFI )
Starting Electric
Transmission By Shaft
Ignition CDI

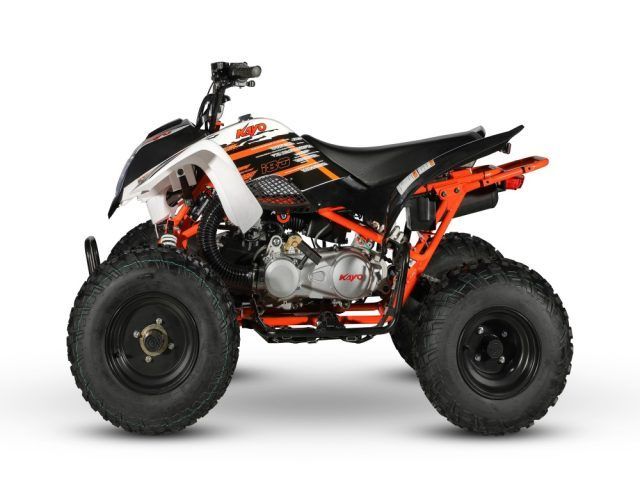

A180
Engine Type 180 CVT JN/GY6 (R-N-F)
Displacement 177.3cc
Bore*Stroke 62.5*57.8mm
Compression Ratio 10.0 : 1
Max Power 7.3 / 7500 kw/Rpm
Max Torque 10 / 6000 Nm. /Rpm
Fuel System Carburetor
Starting Electric
Transmission Chain (17T-37T 530#)
Ignition CDI

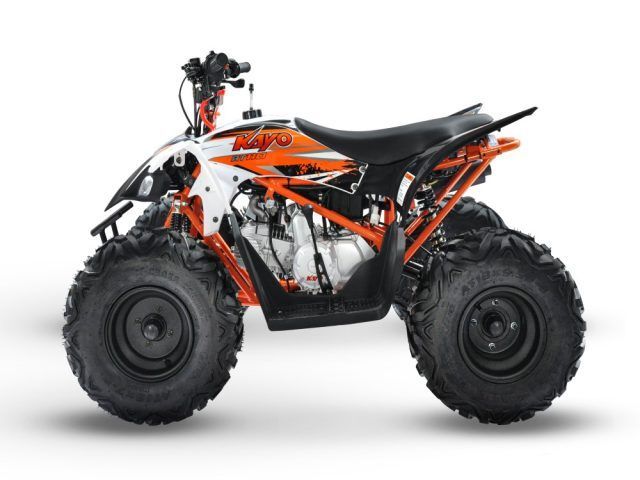

AT110
Engine Type Single-Cylinder, 4-Stroke, Air Cooling, Full-Auto, 2 Gears
Displacement 107cc
Bore*Stroke 52.4mm*49.5mm
Compression Ratio 9.0 : 1
Max Power 5.1 / 8000 kw/rpm
Max Torque 7.2 / 5000 N.m/r/min
Fuel System Standard Carburetor
Starting Electric
Transmission Chain (13T-37T 420#)
Ignition CDI

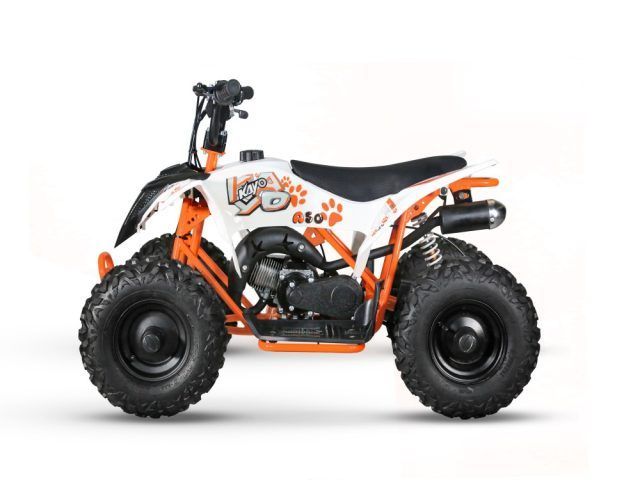

A50
Engine Type Two Stroke, Naturally Air-Cooled
Displacement 49cc
Compression Ratio 7.6 : 1
Max Power 1.37 / 6500 kw/rpm
Max Torque 2.0 / 5000 N.m/r/min
Starting Pull Start
Ignition Spark Plug
Dirt Bikes

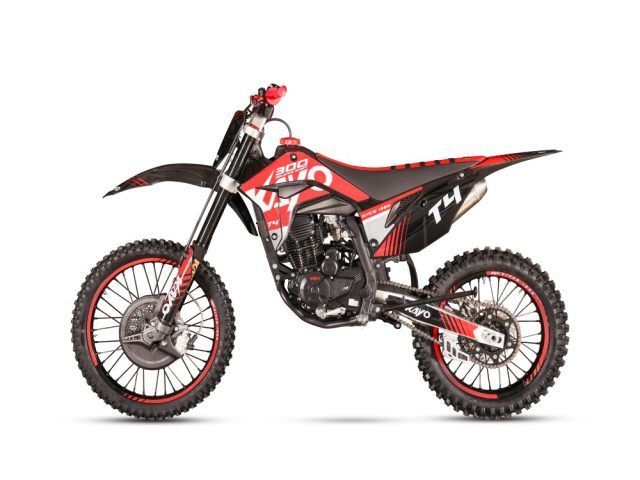

T4-300-ENDURO
Engine Type 4-Stroke, SOHC, Air Cooled
Displacement 271.3 cc
Bore*Stroke 75.0 × 61.4 mm
Compression Ratio 9.29:1
Max Power 16.0 kw @ 8500 rpm
Max Torque 22.0 N⋅ m @ 6500 rpm
Fuel System Carburetor
Starting Electric
Transmission Manual Five Speed with 1-N-2-3-4-5
Ignition CDI
K2-ENDURO
Engine Type 1-Cylinder, 4-Stroke, Air Cooling, Manual, International 5 Gears
Displacement 223cc
Bore*Stroke 65.5mm*66.2mm
Compression Ratio 9.6 : 1
Max Power 12.0 / 7500 kw/rpm
Max Torque 17.5 / 6000 N.m/r/min
Fuel System Standard Carburetor
Starting Electric and Kick
Transmission Chain (13T-45T 520#)
Ignition CDI

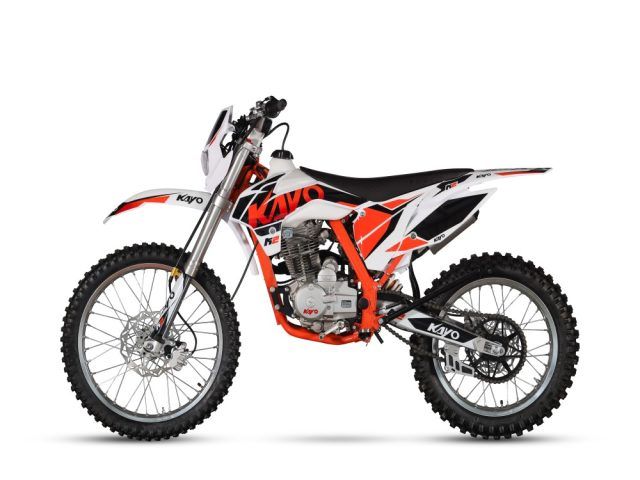

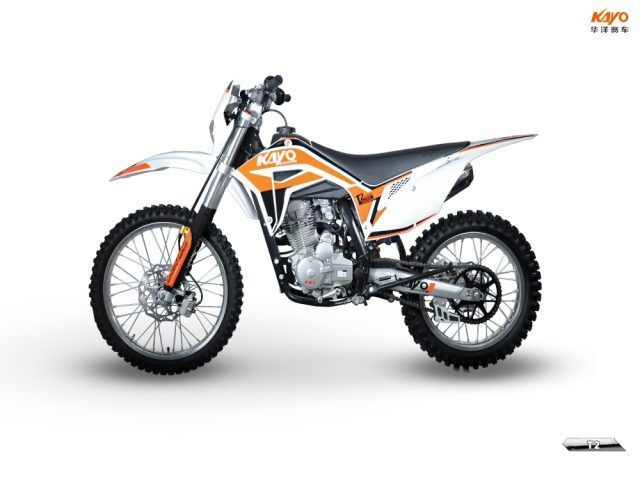

T2-ENDURO
Engine Type 1-Cylinder, 4-Stroke, Air Cooling, Manual, International 5 Gears
Displacement 223cc
Bore*Stroke 65.5mm*66.2mm
Compression Ratio 9.3 : 1
Max Power 12.0 / 7000 kw/rpm
Max Torque 17.5 / 5500 N.m/r/min
Fuel System Standard Carburetor
Starting Electric and Kick
Transmission Chain (13T-45T 520#)
Ignition CDI

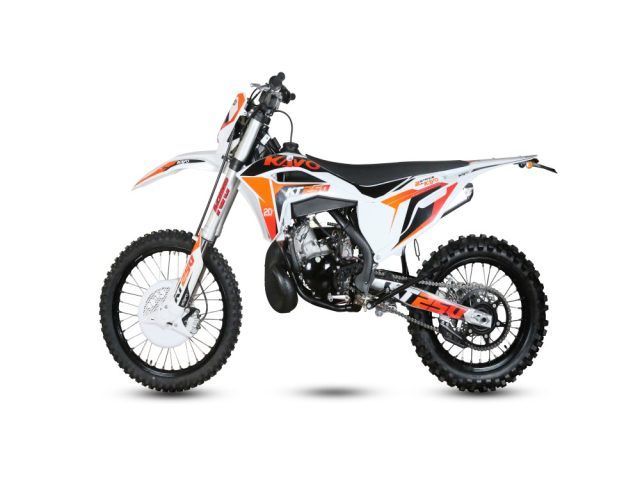

KT250
Engine Type 2-Stroke, Water Cooling, Manual, 6 Gears
Displacement 250cc
Compression Ratio 6.5：1
Max Power 26 / 8000 kw/rpm
Max Torque 30 / 7500 N.m/r/min
Fuel System PWK 38 Carburetor
Starting Electric and Kick
Transmission Chain (12T/51T #520)
Ignition CDI
K5-ENDURO
Engine Type 4-Stroke, Liquid Cooling, Manual
Displacement 279.6cc
Bore*Stroke 74mm*65mm
Compression Ratio 10.5 : 1
Max Power 19 / 8500 kw/rpm
Max Torque 24 / 6500 N.m/r/min
Fuel System Standard Carburetor
Starting Electric
Transmission Manual Six Speed with 1-N-2-3-4-5-6
Ignition CDI

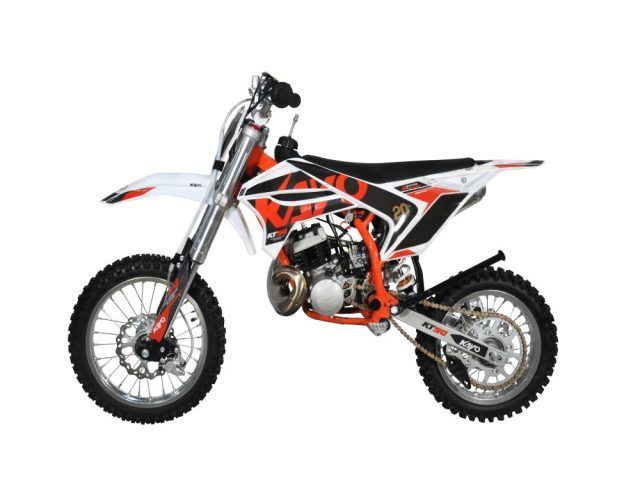

KT50
Engine Type Single-Cylinder, 2 Stroke, Air Cooling, Full Auto
Displacement 50.2cc
Bore*Stroke 40.0mm*40.0mm
Compression Ratio 12.3 : 1
Max Power 6.0 / 9250 kw/rpm
Max Torque 6.35 / 9250 N.m/r/min
Fuel System Standard Carburetor
Starting Electric and Kick
Transmission Chain (9T-45T 420)
Ignition CDI

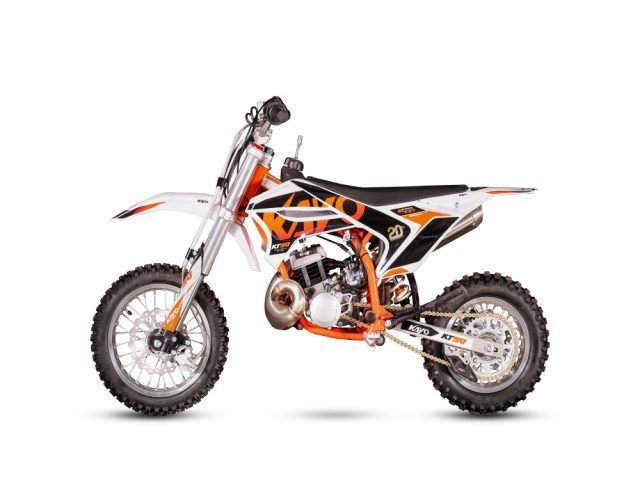

KT50-MINI
Engine Type Single-Cylinder, 2 Stroke, Air Cooling, Full Auto
Displacement 50.2cc
Bore*Stroke 40.0mm*40.0mm
Compression Ratio 12.3 : 1
Max Power 6.0 / 9250 kw/rpm
Max Torque 6.35 / 9250 N.m/r/min
Fuel System Standard Carburetor
Starting Electric and Kick
Transmission Chain (9T-45T 420)
Ignition CDI

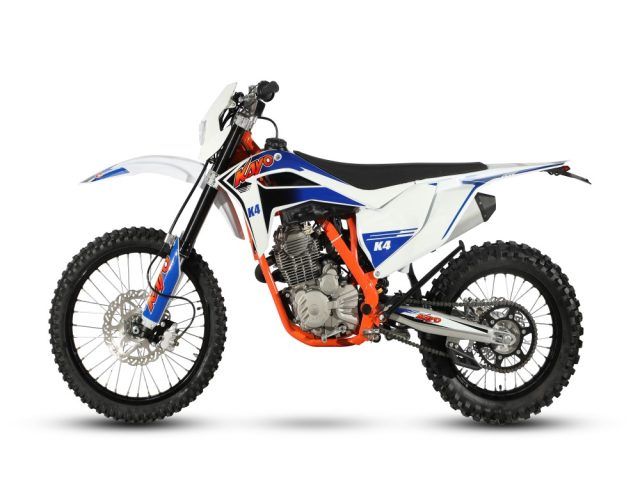

K4-ENDURO
Engine Type 1-Cylinder, 4-Stroke, Air Cooling, Manual
Displacement 249.9cc
Bore*Stroke 72mm*61.4mm
Compression Ratio 9.25 : 1
Max Power 15.0 / 8500 kw/rpm
Max Torque 18 / 6500 N.m/r/min
Fuel System Standard Carburetor
Starting Electric
Transmission 49T #520H
Ignition CDI
Pit Bikes

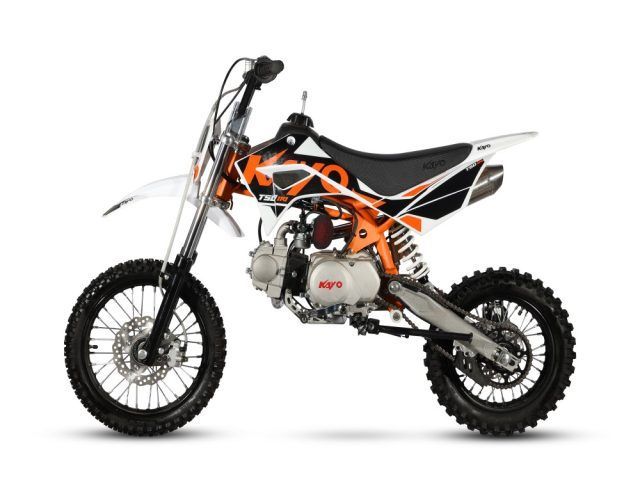

TSD110
Engine Type Single-Cylinder, 4-Stroke, Air Cooling
Displacement 106.7cc
Bore*Stroke 52.4mm*49.5mm
Max Power 5.1 / 8000 kw/rpm
Max Torque 7.2 / 5000 N.m/r/min
Compression Ratio 9.0 : 1
Shift Type Four Gear Regular Meshing Type
Ignition Mode CDI
Sprocket Drive #420H; 14T/41T
Starting Kick

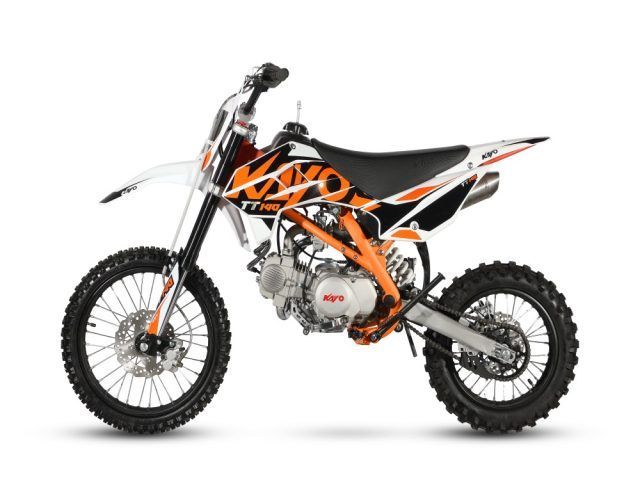

TT140
Engine Type Single-Cylinder, 4-Valve, Oil Cooling, Manual, 4 Gears
Displacement 140cc
Bore*Stroke 56mm*57mm
Max Power 8.2 / 8000 kw/rpm
Max Torque 10.2 / 7500 N.m/r/min
Compression Ratio 9.8 : 1
Fuel System Standard Carburetor
Starting Kick
Transmission Chain (15T-41T 428H#)
Ignition CDI

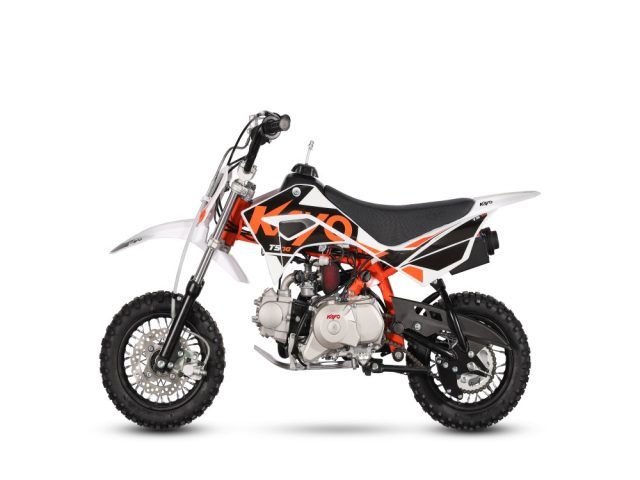

TS70
Engine Type 4-Stroke, SOHC, Air Cooled
Displacement 72.0cc
Bore*Stroke 47.0mm*41.4mm
Max Power 3.7 / 8000 kw/rpm
Max Torque 5.0 / 6000 N.m/r/min
Compression Ratio 8.8 : 1
Shift Type Full Automatic
Ignition Mode CDI
Drive Chain
Starting Electric
SSV

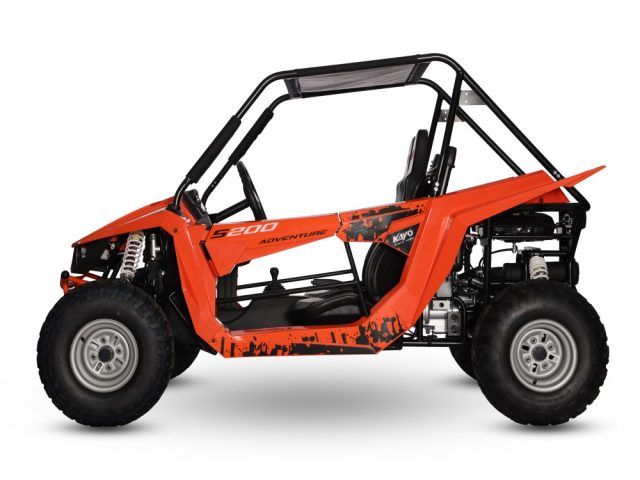

S200
Engine Type Single Cylinder, 4-Stroke, Oil Cooling, Vertical Engine
Displacement (ml) 196.2cc
Max Power 10 / 7000
Max Torque 15 / 5500
Compression Ratio 9.3 : 1
Gear Shift Manual, R-N-F
Starting Electric
Ignition CDI
Battery 12V 14AH
Transmission CVT
Drive Shaft Drive

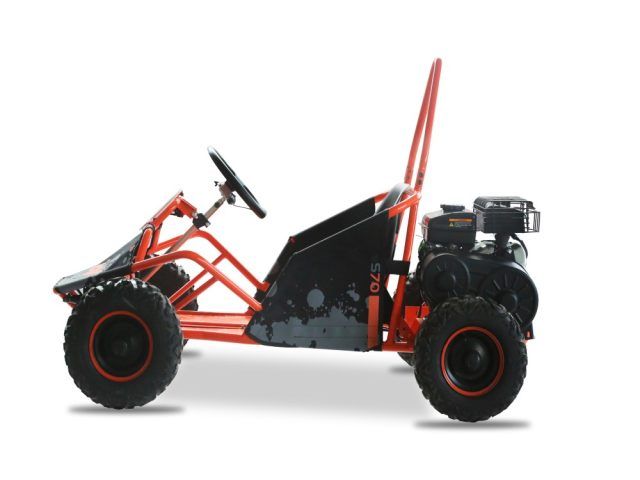

S70
Engine Type Single Cylinder, 4-Stroke, Air Cooling, Overhead Valve(OHV)
Displacement 79cc
Compression Ratio 8.5 : 1
Max Power 1.4
Max Torque 3.2 / 3600
Fuel System Standard Carburetor
Starting Pull Start
Transmission Chain
Ignition Non-Contact Transistor
Electric Vehicles

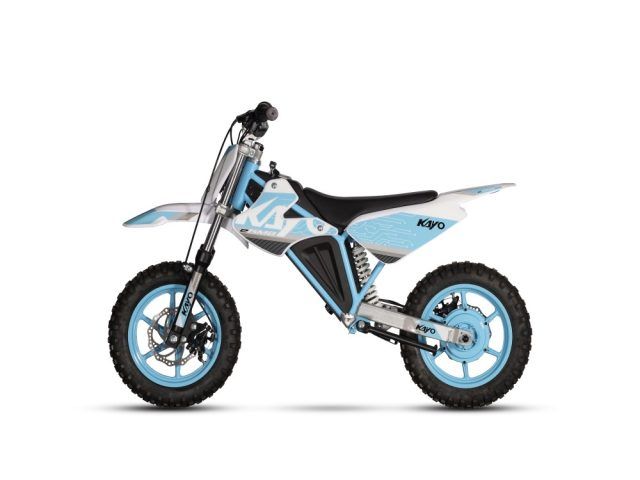

eKMB
Motor PMDC Brushed Hub Motor
Battery Lithium 48V 8Ah
Cooling System Air Cooled
Speeds 2 Speeds: Low 8 km/h | High 25 km/h
Rated Power 350w
Maximum Power 800w
Maximum Torque 3.0 N.m
Estimated Range 70 Minutes
Estimated Charging Time 5 – 6 Hours

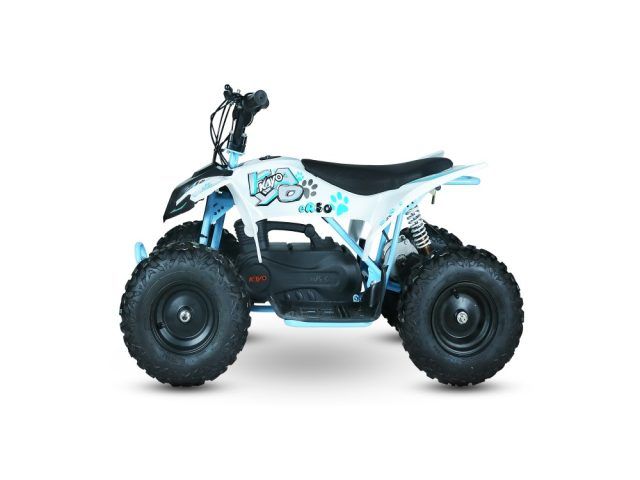

eA50
Motor Brushed DC Motor
Battery Lead Acid 36V 12Ah
Cooling System Air Colled
Speeds 2 speeds: Low 8 km/h | High 16 km/h
Rated Power 500w
Maximum Power 800w
Maximum Torque 3.5 N.m
Estimated Range 90 Minutes
Estimated Charging Time 8 Hours
